SINGLE MODE 2.0*3.0MM INDOOR DROP CABLE WITH 900ΜM NYLON BUFFER GJXJOH
1.1 CableDescription
The 900μm nylon tight buffered optical fiber unit ispositioned in the center. Two 0.45mm steel wire are placed at the two sides.Then, the cable is completed with a black or colored LSZH sheath

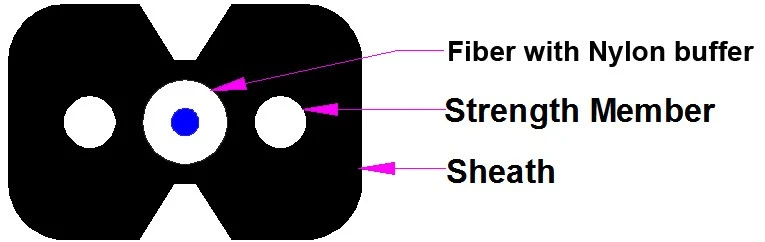

1.2 CableStructure
1.3 Cable Characteristics
l Speciallow-ben-sensitivity fiber provides high bandwidth and excellent communicationtransmission property.
l Nylon buffer and steel wire strength member ensure good performance ofcrush resistance to protect the fiber.
l Simple structure, light weight and high practicability
l Novel flute design easily strip and splice, simplify the installationand maintenance.
l Low smoke, zero halogenand flame retardant sheath
2. Optical Characteristics& Technical Parameters
2.1 Optical Characteristics
Fiber type | Attenuation | OFL | Valid bandwidth | 10G Ethernet | Minimum | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |||
Nominal | Maximum | Nominal | Maximum | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A2 | 0.36/0.22 | 0.5/0.4 | 7.5 | |||||
2.2 Technical Parameters
Cable Type | Fiber Count | Cable Size | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
GJXJOH-1G.657A2 | 1 | 2.0x3.0(±0.1） | 8.0 | 80/200 | 500/1000 | 15/30 |
3. Packing and shipping
3.1 The cables are packed in plywood drums.
3.2 Standard delivery length is 1km/drum or percustomer’s requirements.
3.3 Sheath Marking
Customized
