MULTI PURPOSE DISTRIBUTION CABLE 4-24 CORES

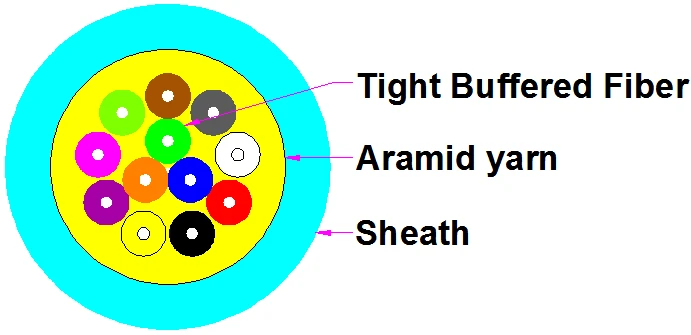

1.1 CableStructure
1.2 Characteristics
A. Tight buffer fiber easystrip
B. Tight buffer fiber hasexcellent flame-retardant performance
C. Aramid yarn as strengthmember make cable have excellent tensile strength
D. The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant andharmless to environment etc.
1.3 Cable Application
A. Indoor any purpose cabledistribution
B. Backbone distributioncable in a building
C. Multi optical fiberjumper
1.4 CableProperties
Transporttemperature: - 20 deg C to + 60 deg C
Storage Temperature: - 20 deg C to + 60 deg C
Operating temperature: - 20 deg C to + 60 deg C
Installation temperature: - 5 deg C to + 50 deg C
1.5 Color code scheme:According to EIA/TIA 598
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Fiber color | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Pink | Aqua |
Tube color | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Pink | Aqua |
2. Optical Characteristics& Technical Parameters
2.1 Technical Parameters
Cable Code | Cable Diameter | Cable Weight(Ref) | Tensile strength | Crush Resistance | Bending Radius | |
PVC jacket | LSZH jacket | |||||
GJFJV(H)-4F | 4.8±0.3 | 16.0 | 18.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-6F | 5.1±0.3 | 20.0 | 23.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-8F | 5.6±03 | 27.0 | 31.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-12F | 6.2±03 | 32.0 | 36.0 | 130/440 | 300/1000 | 20D/10D |
GJFJV(H)-24F | 8.1±0.3 | 53.0 | 57.0 | 400/1320 | 300/1000 | 20D/10D |
2.2 OpticalCharacteristics
Fiber Type | Attenuation | OFL | Valid mode | 10G Ethernet | Min. bending | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |||
Typical | Max. | Typical | Max. | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | 0.5/0.4 | 16 | |||||
G657A1 | 0.36/0.22 | 0.5/0.4 | 10 | |||||
G657A2 | 0.36/0.22 | 0.5/0.4 | 7.5 | |||||
OM1 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ≥2000 | ≤300 | 30 | ||
OM2 | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ≥4700 | ≤550 | 30 | ||
OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 | ||
OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤350 | 30 | ||
3. Packing and shipping
3.1 The cables are packed in wooden drums
3.2 Standard delivery length is 1km/roll or percustomer’s requirements.
3.3 Sheath Marking
The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
Re-marking is yellow color, ifnecessary.
RUX *** xxFIBRE Month/Year XXXXM
l RUX: Manufacturer’s Name
l ***: Customer’s name
l xxFIBRE: Fiber count
l Month/Year: Manufacturedate
l XXXXM: The figure of meter.
