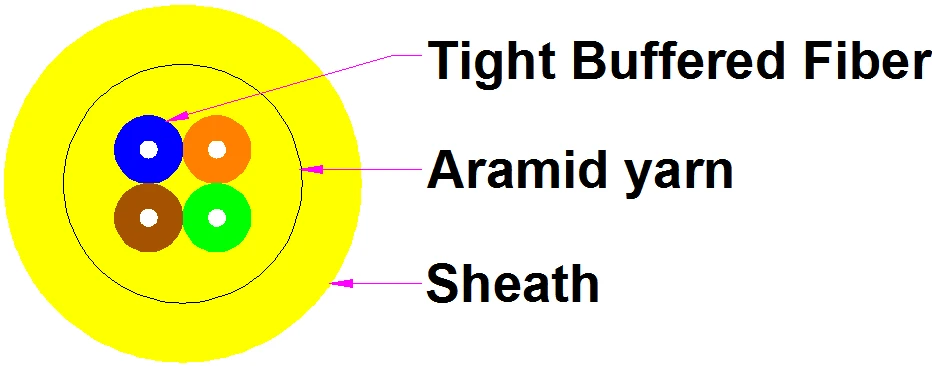

1.1      CableStructure

1.2  Characteristics

A.  Tight buffer fiber easystrip

B.  Tight buffer fiber hasexcellent flame-retardant performance

C.  Aramid yarn as strengthmember make cable have excellent tensile strength

D.  The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant andharmless to environment etc.

1.3  Cable Application

1. As access cable in access network or premises network;

2. As building cable in premises distribution system,such as shaft cabling,drainage tubes cabling,trough cabling, wall cabling, ceiling cabling, especially in the environment of high requirements of flexibility and bending properties

3. Used in communication between outdoor AP and ONT.

1.4  CableProperties

Transporttemperature: - 20 deg C to + 60 deg C

Storage Temperature: - 20 deg C to + 60 deg C

Operating temperature: - 20 deg C to + 60 deg C

Installation temperature: - 5 deg C to + 50 deg C

1.5  Color code scheme:According to EIA/TIA 598

A wide ranged of optical fiber types are available (G.652D, G.657, A1a, A1b etc.)

    Strength Member: Aramid yarn

    Outer diameter: Customizable

        Material: LSZH

   Color: Black

2. OpticalCharacteristics

3. Packing and  shipping

3.1  The cables are packed in wooden drums

3.2  Standard delivery length is 1km/roll or percustomer’s requirements.

3.3  Sheath Marking

The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX  ***  xxFIBRE  Month/Year  XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l xxFIBRE: Fiber count

l Month/Year: Manufacture date

l XXXXM: The figure of meter.
