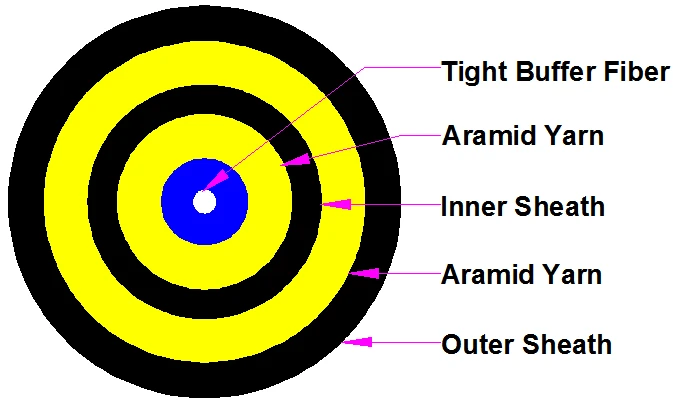

1.1  CableStructure

1.2  Characteristics

A.  Tight buffer fiber easystrip

B.  Tight buffer fiber has excellent flame-retardant performance

C.  Aramid yarn as strengthmember make cable have excellent tensile strength

D.  The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant andharmless to environment etc.

1.3  Cable Application

A.  Optical fiber jumper or pigtail

B.  Indoor riser level andplenum level cable distribution

C.  Interconnect betweeninstruments, communication equipment.

1.4  CableProperties

Transporttemperature: - 20 deg C to + 60 deg C

Storage Temperature: - 20 deg C to + 60 deg C

Operating temperature: - 20 deg C to + 60 deg C

Installation temperature: - 5 deg C to + 50 deg C

1.5  Color code scheme:According to EIA/TIA 598

2.  Optical Characteristics& Technical Parameters

2.1  Technical Parameters

2.2  OpticalCharacteristics

3. Packing and shipping

3.1  The cables are packed in wooden drums andthen in carton box

3.2  Standard delivery length is 1km/roll or percustomer’s requirements.

3.3  Sheath Marking

The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX  ***  xxFIBRE  Month/Year  XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l xxFIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure of meter.
