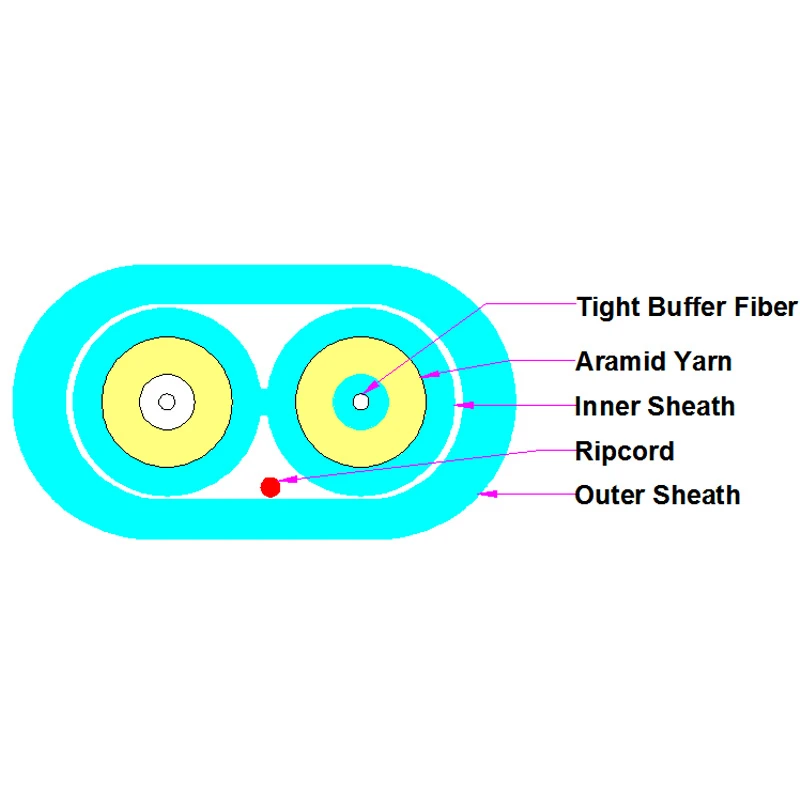

1.1  CableStructure

1.2  Characteristics

A.  Small size, light weight, easy to strip

B.  Soft, flexible, easy to lay and splice

C.  Good mechanical and environmental performance;

D.  Meet various application requirements;

E.  Meet the requirements of RoHS.

1.3  CableApplication

A.  As pigtails and patch cords for communication equipment;

B.  As optical connections of optical equipment and apparatus, optical distribution frames and optical communication equipment rooms;

C.  As indoor cable.

1.4  CableProperties

Transporttemperature: - 20 deg C to + 60 deg C

Storage Temperature: - 20 deg C to + 60 deg C

Operating temperature: - 20 deg C to + 60 deg C

Installation temperature: - 5 deg C to + 50 deg C

A wide ranged of optical fiber types are available (G.652D, G.657, OM1, OM2, OM3,OM4 etc.)

Outer diameter: Customizable

Material: PVC, LSZH

Color: Customized

OpticalCharacteristics

3. Packing and shipping

3.1  The cables are packed in wooden drums andthen in carton box

3.2  Standard delivery length is 1km/roll or percustomer’s requirements.

3.3  Sheath Marking

The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX  ***  xxFIBRE  Month/Year  XXXXM

l RUX: Manufacturer’s Name

l ***: Customer’s name

l xxFIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure of meter.
