1.  General

1.1   CableDescription

The tight buffer optical fiber unit ispositioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) areplaced at the two sides. Then the cable is completed with a black or color LSZHsheath and armed with steel tape. Finally the cable is completed with a PEsheath

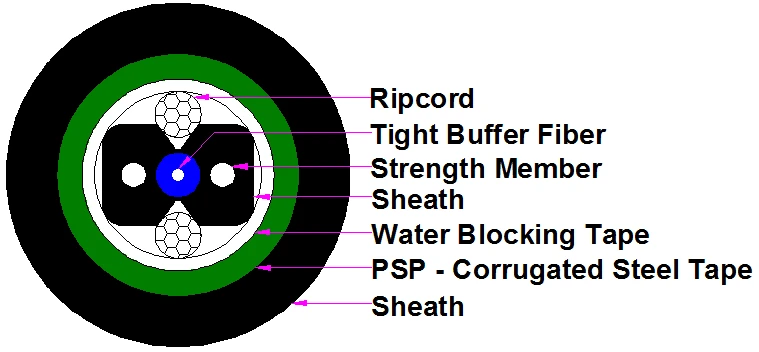

1.2  CableStructure

1.3  Cable Characteristics

l   Speciallow-ben-sensitivity fiber provides high bandwidth and excellent communicationtransmission property.

l   Two parallel FRP strength members ensure good performance of crushresistance to protect the fiber.

l   Simple structure, light weight and high practicability

l   Novel flute design easily strip and splice, simplify the installationand maintenance.

l  Low smoke, zero halogenand flame retardant sheath; PE sheath protects cale from ultraviolet radiation

l  PSP enhancing moisture-proof.

2.  Optical Characteristics& Technical Parameters

2.1  Optical Characteristics

2.2  Technical Parameters

3. Packingand shipping

3.1  The cables are packed in plywood drums.

3.2  Standard delivery length is 2km/drum or percustomer’s requirements.

3.3  Sheath Marking

The sheath marking are hot stamped or  engraved on the sheath at one meter intervalwith white color. The accuracy of the length marking shall be 0 ~ +1%.

Re-marking is yellow color, ifnecessary.

RUX  ***  xx FIBRE  Month/Year  XXXXM

l RUX: Manufacturer’s Name

l ***: Customer's name

l Xx FIBRE: Fiber count

l Month/Year: Manufacturedate

l XXXXM: The figure ofmeter.
